Standard Mirror Blanks

Mirror Blanks

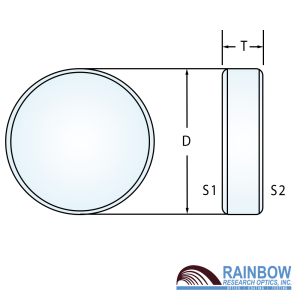

Plane Mirror Blanks

part code: MP

Substrate: UV Fused Silica, BK7 or Zerodur
Diameter Tolerance: +0.0/-0.20 mm
Thickness Tolerance: ±0.25 mm
S1 Surface Quality: 10-5 laser quality

S2 Surface Quality: Commercial polish
Parallelism: <3 arc min.
Clear Aperture: > 85% of diameter
Edge Bevel: 0.3 mm face width at 45°

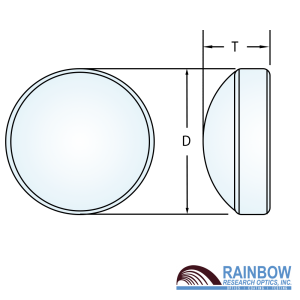

Convex Spherical Mirror Blanks

part code: MX

Substrate: BK7 or UV Fused Silica
Diameter Tolerance: +0.0/-0.20 mm
Thickness Tolerance: ±0.25 mm
S1 Surface Flatness: λ/10 @ 633 nm
S1 Surface Quality: 10-5 laser quality

Focal Length Tolerance: ± 0.5%
Centration Error: <3 arc min.
Clear Aperture: > 85% of diameter
Edge Bevel: 0.3 mm face width at 45°

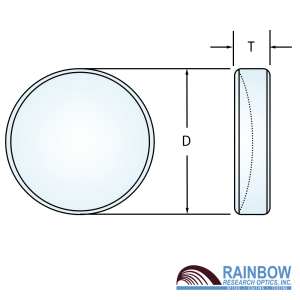

Concave Spherical Mirror Blanks

part code: MC

Substrate: BK7 or UV Fused Silica
Diameter Tolerance: +0.0/-0.20 mm
Thickness Tolerance: ±0.25 mm
S1 Surface Flatness: λ/10 @ 633 nm
S1 Surface Quality: 10-5 laser quality

Focal Length Tolerance: ± 0.5%
Centration Error: <3 arc min.
Clear Aperture: > 85% of diameter
Edge Bevel: 0.3 mm face width at 45°

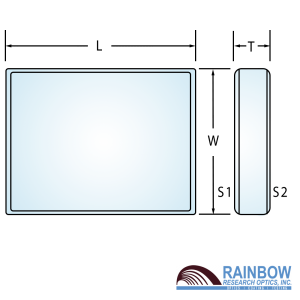

Square Mirror Blanks

part code: SM

Substrate: BK7 or UV Fused Silica
Dimensional Tolerance:
+0.0/-0.20 mm
Thickness Tolerance:
±0.25 mm
S1 Surface Quality:
10-5 laser quality

S2 Surface Quality: Commercial polish
Parallelism
: <3 arc min.
Clear Aperture:
> 85% of diameter
Edge Bevel:
0.3 mm face width at 45°

Rectangular Mirror Blanks

part code: RM

Substrate: BK7 or UV Fused Silica
Dimensional Tolerance:
+0.0/-0.20 mm
Thickness Tolerance:
±0.25 mm
S1 Surface Quality:
10-5 laser quality

S2 Surface Quality: Commercial polish
Parallelism
<3 arc min.
Clear Aperture:
> 85% of diameter
Edge Bevel:
 0.3 mm face width at 45°

Elliptical Mirror Blanks

part code: OBI

Substrate: BK7 or UV Fused Silica
Diameter Tolerance:
+0.0/-0.20 mm
Thickness Tolerance:
±0.25 mm
S1 Surface Quality:
10-5 laser quality

S2 Surface Quality: Commercial polish
Parallelism
<3 arc min.
Clear Aperture:
> 85% of diameter
Edge Bevel:
 0.3 mm face width at 45°
